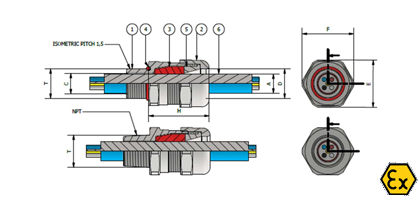

SERIE DN Prensaestopas ATEX II 2 GD Ex db IIC Gb / Ex eb IIC Gb / Ex tb IIIC Db – IP66
Prensaestopas atex para cable no armado
CERTIFICADOS:
- ATEX: TUV CY24ATEX0207035X
- IECEx: IECEx TPS 25.0074X
APLICACIÓN:
- Cable no armado
- Sellado externo
- Uso general en exteriores e interiores
|
INOX |
LATÓN NIQUELADO |
ROSCA |
A |
C |
D |
H |
E |
F |
|
|
MIN |
MAX |
||||||||
|
DN0MIXM16 |
DN0MONM16 |
M16 |
4 |
10 |
11 |
16 |
33 |
24 |
26 |
|
DN0MIX |
DN0MON |
M20 |
4 |
10 |
11 |
16 |
33 |
24 |
26 |
|
DN1MIX |
DN1MON |
M20 |
5,5 |
13 |
14 |
20 |
41 |
32 |
35 |
|
DN1MIXM25 |
DN1MONM25 |
M25 |
5,5 |
13 |
14 |
20 |
41 |
32 |
35 |
|
DN2MIX |
DN2MON |
M25 |
10,5 |
18 |
19 |
25 |
41 |
36 |
35 |
|
DN3MIX |
DN3MON |
M32 |
15 |
24 |
25 |
32 |
52 |
45 |
49 |
|
DN4MIX |
DN4MON |
M40 |
21 |
30 |
31 |
38 |
53 |
50 |
55 |
|
DN5MIX |
DN5MON |
M50 |
24 |
36 |
37 |
44 |
53 |
61 |
65 |
|
DN6MIX |
DN6MON |
M63 |
36 |
45 |
47 |
54 |
53 |
70 |
75 |
|
INOX |
LATÓN NIQUELADO |
ROSCA |
A |
C |
D |
H |
E |
F |
|
|
MIN |
MAX |
||||||||
|
DN0NIXN3/8” |
DN0NON3/8” |
3/8″ NPT |
4 |
10 |
11 |
16 |
33 |
24 |
26 |
|
DN0NIX |
DN0NON |
1/2″ NPT |
4 |
10 |
11 |
16 |
33 |
24 |
26 |
|
DN1NIX |
DN1NON |
1/2″ NPT |
5,5 |
13 |
14 |
20 |
41 |
32 |
35 |
|
DN1NIXN3/4” |
DN1NON3/4” |
3/4″ NPT |
5,5 |
13 |
14 |
20 |
41 |
32 |
35 |
|
DN2NIX |
DN2NON |
3/4″ NPT |
10,5 |
18 |
19 |
25 |
41 |
36 |
35 |
|
DN3NIX |
DN3NON |
1″ NPT |
15 |
24 |
25 |
32 |
52 |
45 |
49 |
|
DN4NIX |
DN4NON |
1 1/4″ NPT |
21 |
30 |
31 |
38 |
53 |
50 |
55 |
|
DN5NIX |
DN5NON |
1 1/2″ NPT |
24 |
36 |
37 |
44 |
53 |
61 |
65 |
|
DN6NIX |
DN6NON |
2″ NPT |
36 |
45 |
47 |
54 |
53 |
70 |
75 |
