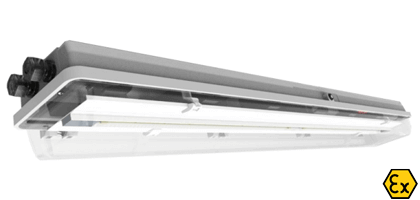

SERIE PSF LED – LUMINARIAS LED Y EMERGENCIA ZONA 1, 2, 21, 22 ATEX II 2GD
|
ESPECIFICACIONES TÉCNICAS |
|
|
Certificado: |
FIDI 19 ATEX 0029 FIDI 19 ATEX 0029/1 |
|
Marcado: |
II 2GD I M2 (PSF-28LED-M) Ex db eb mb op is IIC T4 Gb Ex tb op is IIIA/IIIC T80ºC Db Ex db eb mb I Mb (PSF-28LED-M) |
|
Temperatura: |
-30ºC (-20ºC) ≤ Ta ≤ +55ºC -30ºC (-20ºC) ≤ Ta ≤ +40ºC Emergencia: -20ºC ≤ Ta ≤ +40ºC |
|
Tensión: |
110-240 V AC / 220-250 V DC |
|
Frecuencia: |
50 – 60 Hz |
|
Vida útil: |
L70B10C10: Tamb max: 35000h – Tamb max-10ºC: 60000h – Tamb max-20ºC: 70000h |
|
Bornas conexión: |
L1, L2, L3, N, PE – máx. 2,5 mm2 |
|
Entradas cable: |
2xM25 |
|
Material: |
Cuerpo: Poliéster reforzado con fibra de vidrio RAL 7038 Difusor: Policarbonato Junta: Silicona |
|
Bajo demanda: |
Otras temperaturas de color DALI |
|
Ref |
Descripción |
Potencia |
LM |
TC |

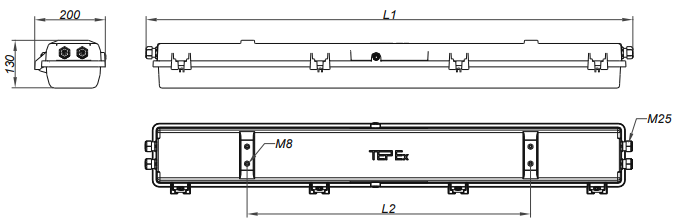

Dimensiones (AxBxC mm) |
L2 (mm) |
Peso (Kg) |
|
-30ºC ≤ Ta ≤ +40ºC |
|||||||
|
PSF 28 LED-2 |
Luminaria LED 37W |
37 W |
4200 |
4300 K |
750x200x130 |
400 |
8 |
|
PSF 52 LED-2 |
Luminaria LED 70W |
70 W |
7710 |
1370x200x130 |
800 |
12 |
|
|
-30ºC ≤ Ta ≤ +55ºC |
|||||||
|
PSF 28 LED-1 |
Luminaria LED 28W |
28 W |
3183 |
4300 K |
750x200x130 |
400 |
8 |
|
PSF 52 LED-1 |
Luminaria LED 52W |
52 W |
5706 |
1370x200x130 |
800 |
12 |
|
|
-20ºC ≤ Ta ≤ +40ºC |
|||||||
|
PSF 70 LED-2 |
Luminaria LED 90W |
90 W |
9030 |
4300 K |
1665x200x130 |
800 |
14 |
|
-20ºC ≤ Ta ≤ +55ºC |
|||||||
|
PSF 70 LED-1 |
Luminaria LED 70W |
70 W |
7710 |
4300 K |
1665x200x130 |
800 |
14 |
|
Emergencia, autonomía 3h, -20ºC ≤ Ta ≤ +40ºC |
|||||||
|
PSF 28 LED-E |
Luminaria LED 28W |
28 W |
3175 1150 (3h) |
4300 K |
750x200x130 |
400 |
8 |
|
PSF 52 LED-E |
Luminaria LED 56W |
56 W |
6110 1150 (3h) |
1370x200x130 |
800 |
12 |
|
|
Referencia |
Accesorio |
|
PSF 218 10-110 PSF 236 20-110 PSF 258 30-110 |
Difusor PSF |
|
PSF 218 10-120 PSF 236 20-120 PSF 258 30-120 |
Junta |
|
LEDEx 03/28-1, LEDEx 03/28-2 LEDEx 03/52-1, LEDEx 03/52-2 LEDEx 03/70-1, LEDEx 03/70-2 |
Reflector interno con módulo LED |
|
DRIVEx 01/28-1, DRIVEx 01/28-2 DRIVEx 01/52-1, DRIVEx 01/52-2 DRIVEx 01/70-1, DRIVEx 01/70-2 |
Controlador LED |
|
PSF 28 LED 30-180 PSF 50 LED 30-181 PSF 70 LED 30-182 |
Difusor LED |
|
PSF 52 LED 30-190 PSF 28 LED 30-191 PSF 70 LED 30-192 |
Kit de montaje fexible |
|
Referencia |
Accesorio |
|

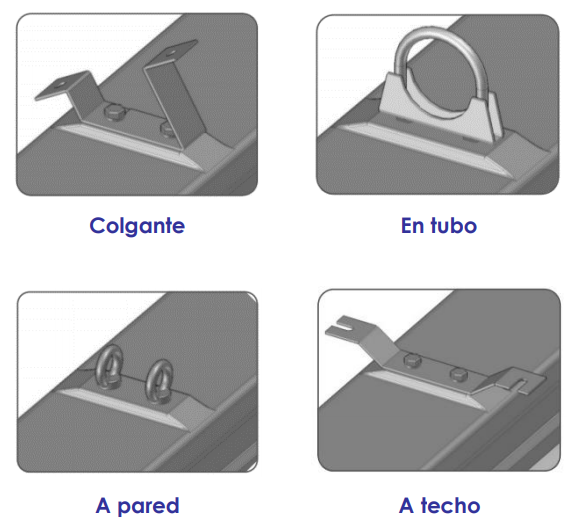

PSF 20-160 |
Llave SW8 |
|
PSF 30-110 |
Sistema de montaje a techo |
|
PSF 30-130 |
Sistema de montaje a pared |
|
PSF 30-120 |
Sistema de montaje a tubo |
|
PSF 30-150 |
Sistema de montaje en suspensión |
