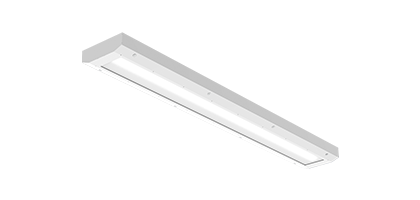

BOXER-LED – LUMINARIAS LED ANTIVANDÁLICAS
|
ESPECIFICACIONES TÉCNICAS |
|
|
Temperatura: |
-20ºC ≤ Ta ≤ +60ºC |
|
Tensión: |
220 – 240 V |
|
Frecuencia: |
50 – 60 Hz |
|
Vida útil LED: |
L80B10 ta30 – 70.000 h L70B10 ta30 – 100.000 h |
|
Bornas conexión: |
Bloque de bornas sin tornillos tripolar, diámetro máx. cables 2,5 mm2 |
|
Material: |
Carcasa: lámina de metal pintado RAL9003 Difusor: marco metálico blanco RAL9003 y difusor de policarbonato transparente Reflector: lámina de aluminio pulido |
|
Instalación: |
Directamente a techo o pared, empotrada con marco o en esquina |
|
Bajo demanda: |
EM – Emergencia no permanente (1h, 3h) MULTI – Emergencia permanente (1h, 3h) DIM – Regulable (DSI, DALI) NEREZ – Carcasa de acero inoxidable VIDRIO – Cristal temperado de seguridad RAL – Otro color SENSOR MW – Sensor de microondas LUZ NOCTURNA – LED integrado de 4-8W para iluminación nocturna (3K o 4K) 3000K/4000K/5000K/6500K – Otras temperaturas de color |
|
Ref |
Descripción |
Potencia |
TC |
LM |
T máx (ºC) |
Dimensiones (AxBxC mm) |
Montaje DxE/F (mm) |
Peso (Kg) |
|
13274 |
BOXER-LED-1450-4K, IP65 |
8 W |
4000 K |
1123 |
55 |
421x184x56 |
320 |
2,8 |
|
15497 |
BOXER-LED-1650-4K, IP65 |
11 W |
1413 |
2,8 |
||||
|
13273 |
BOXER-LED-2900-4K, IP65 |
18 W |
2393 |
60 |
701x184x56 |
540 |
4,7 |
|
|
13270 |
BOXER-LED-3300-4K, IP65 |
22 W |
2826 |
4,7 |
||||
|
15493 |
BOXER-LED-5800-4K, IP65 |
36 W |
4786 |
55 |
1257x184x56 |
550×550 |
7 |
|
|
15499 |
BOXER-LED-6600-4K, IP65 |
41 W |
5368 |
7 |
||||
|
15495 |
BOXER-LED-7200-4K, IP65 |
48 W |
6350 |
45 |
1519x184x56 |
680×680 |
9 |
|
|
15501 |
BOXER-LED-8200-4K, IP65 |
51 W |
6710 |
9 |
|
Ref |
Descripción |
Potencia |
TC |
LM |
T máx (ºC) |
Dimensiones (AxBxC mm) |
Montaje DxE/F (mm) |
Peso (Kg) |
|
FC: IK10 + 50J |
||||||||
|
40789 |
BOXER-LED-FC-1450-4K, IP65 |
8 W |
4000 K |
1123 |
55 |
426x186x56 |
320 |
3 |
|
40786 |
BOXER-LED-FC-1650-4K, IP65 |
11 W |
1413 |
3 |
||||
|
40790 |
BOXER-LED-FC-2900-4K, IP65 |
18 W |
2393 |
60 |
706x186x56 |
540 |
5 |
|
|
40787 |
BOXER-LED-FC-3300-4K, IP65 |
22 W |
2826 |
5 |
||||
|
40791 |
BOXER-LED-FC-5800-4K, IP65 |
36 W |
4786 |
55 |
1262x186x56 |
550×550 |
7,3 |
|
|
40792 |
BOXER-LED-FC-6600-4K, IP65 |
41 W |
5368 |
7,3 |
||||
|
40788 |
BOXER-LED-FC-7200-4K, IP65 |
48 W |
6350 |
45 |
1524x186x56 |
680×680 |
9,5 |
|
|
40793 |
BOXER-LED-FC-8200-4K, IP65 |
51 W |
6710 |
9,5 |
||||
|
4000K |
MULTI-1H |
MULTI-3H |
DALI |
|
13274 |
38659 |
38660 |
33589 |
|
15497 |
38652 |
38653 |
38654 |
|
13273 |
38657 |
38658 |
38656 |
|
13270 |
29661 |
38655 |
28948 |
|
15493 |
38661 |
33502 |
38662 |
|
15499 |
33131 |
38651 |
31001 |
|
15495 |
38663 |
38664 |
38665 |
|
15501 |
38649 |
38650 |
34687 |
|
FC 4000K |
MULTI-1H |
MULTI-3H |
DALI |
|
40789 |
42812 |
42813 |
42814 |
|
40786 |
42803 |
42804 |
42805 |
|
40790 |
42809 |
42810 |
42811 |
|
40787 |
42806 |
42807 |
42808 |
|
40791 |
42815 |
42816 |
42383 |
|
40792 |
42800 |
42801 |
42802 |
|
40788 |
42817 |
42818 |
42819 |
|
40793 |
42797 |
42798 |
42799 |
